Ambient Power makes First Battery-Free Cell phone Work
University of Washington researchers have created the first cell phone that requires no batteries. This is a major leap forward in moving beyond chargers, cords and dying phones. Instead, the phone harvests the few microwatts of power it requires from either ambient radio signals or light.
The team demonstrated they could make Skype calls using its battery-free phone, demonstrating that the prototype made of commercial, off-the-shelf components can receive and transmit speech and communicate with a base station.
They created this phone by taking advantage of tiny vibrations in a phone’s microphone or speaker that occur when a person is talking into a phone or listening to a call.
An antenna connected to those components converts that motion into changes in standard analog radio signal emitted by a cellular base station. This process essentially encodes speech patterns in reflected radio signals in a way that uses almost no power.
To transmit speech, the phone uses vibrations from the device's microphone to encode speech patterns in the reflected signals. To receive speech, it converts encoded radio signals into sound vibrations that that are picked up by the phone's speaker. In the prototype device, the user presses a button to switch between these two "transmitting" and "listening" modes.

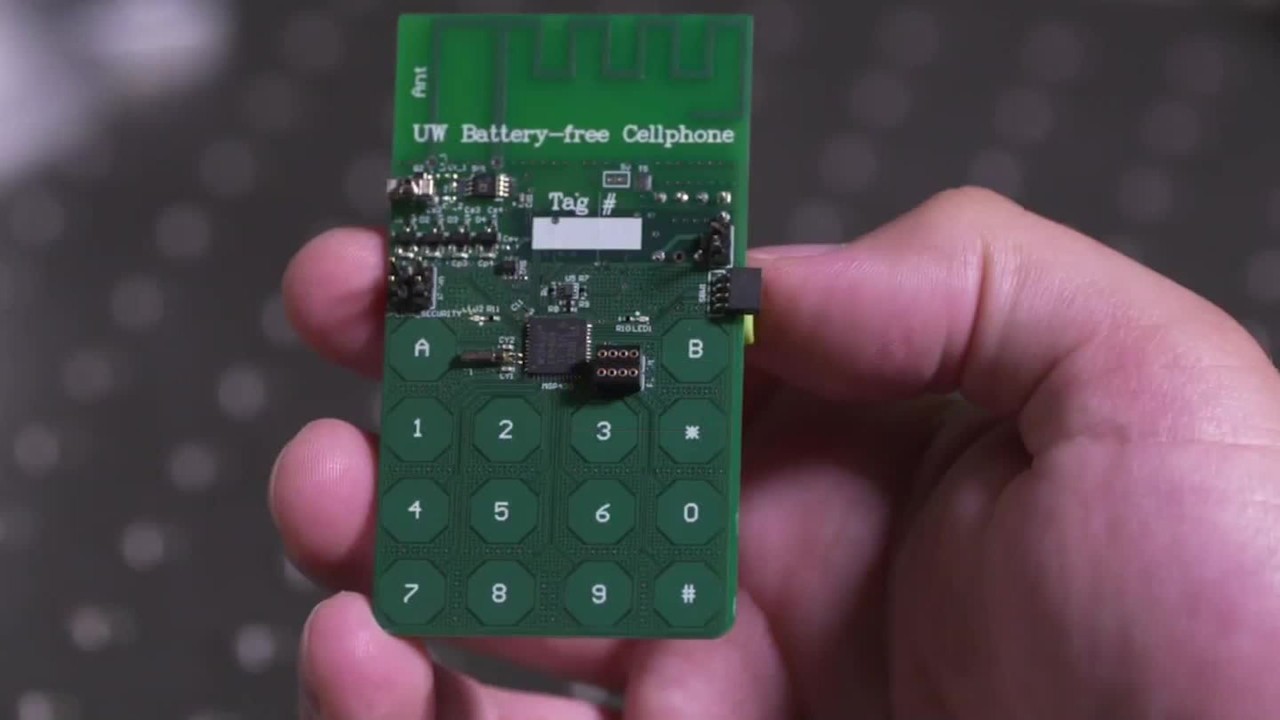

Using off-the-shelf components on a printed circuit board, the team demonstrated that the prototype can perform basic phone functions -- transmitting speech and data and receiving user input via buttons. Using Skype, researchers were able to receive incoming calls, dial out and place callers on hold with the battery-free phone.
The team made a custom base station to transmit and receive the data signals, but theoretically the technology could be implemented into the network infrastructures and Wi-Fi routers that are already in use.
The prototype that UW made still requires a small amount of energy to perform some tasks, with a power budget of 3.5 microwatts.
The UW researchers demonstrated how to harvest this small amount of energy from two different sources. The battery-free phone prototype can operate on power gathered from ambient radio signals transmitted by a base station up to 31 feet away.
Using power harvested from ambient light with a tiny solar cell -- roughly the size of a grain of rice -- the device was able to communicate with a base station that was 50 feet away.
Many other battery-free technologies that rely on ambient energy sources, such as temperature sensors or an accelerometer, conserve power with intermittent operations. They take a reading and then "sleep" for a minute or two while they harvest enough energy to perform the next task. By contrast, a phone call requires the device to operate continuously for as long as the conversation lasts.
Next, the research team plans to focus on improving the battery-free phone's operating range and encrypting conversations to make them secure. The team is also working to stream video over a battery-free cell phone and add a visual display feature to the phone using low-power E-ink screens.
(Story via Science Daily)
